NTPsec

scratchy

Report generated: Thu Jun 1 06:15:05 2023 UTC
Start Time: Wed May 31 06:15:05 2023 UTC
End Time: Thu Jun 1 06:15:05 2023 UTC
Report Period: 1.0 days

Local Clock Time/Frequency Offsets

local offset plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Time Offset -400.613 -400.613 -293.840 1.977 285.531 476.853 476.853 579.371 877.466 169.936 -2.848 µs -4.026 10.05
Local Clock Frequency Offset -2.773 -2.773 -2.769 -2.679 -2.632 -2.609 -2.609 0.137 0.163 0.038 -2.686 ppm -3.792e+05 2.746e+07

The time and frequency offsets between the ntpd calculated time and the local system clock. Showing frequency offset (red, in parts per million, scale on right) and the time offset (blue, in μs, scale on left). Quick changes in time offset will lead to larger frequency offsets.

These are fields 3 (time) and 4 (frequency) from the loopstats log file.



Local RMS Time Jitter

local jitter plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Time Jitter 137.423 137.423 146.519 200.807 250.987 256.013 256.013 104.468 118.590 31.601 198.039 µs 161.9 937.2

The RMS Jitter of the local clock offset. In other words, how fast the local clock offset is changing.

Lower is better. An ideal system would be a horizontal line at 0μs.

RMS jitter is field 5 in the loopstats log file.



Local RMS Frequency Jitter

local stability plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Frequency Jitter 8.916 8.916 9.925 13.769 22.243 26.693 26.693 12.318 17.777 3.652 14.502 ppb 36.25 148.2

The RMS Frequency Jitter (aka wander) of the local clock's frequency. In other words, how fast the local clock changes frequency.

Lower is better. An ideal clock would be a horizontal line at 0ppm.

RMS Frequency Jitter is field 6 in the loopstats log file.



Local Clock Time Offset Histogram

local offset histogram plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Offset -400.613 -400.613 -293.840 1.977 285.531 476.853 476.853 579.371 877.466 169.936 -2.848 µs -4.026 10.05

The clock offsets of the local clock as a histogram.

The Local Clock Offset is field 3 from the loopstats log file.



Server Offsets

peer offsets plot

The offset of all refclocks and servers. This can be useful to see if offset changes are happening in a single clock or all clocks together.

Clock Offset is field 5 in the peerstats log file.



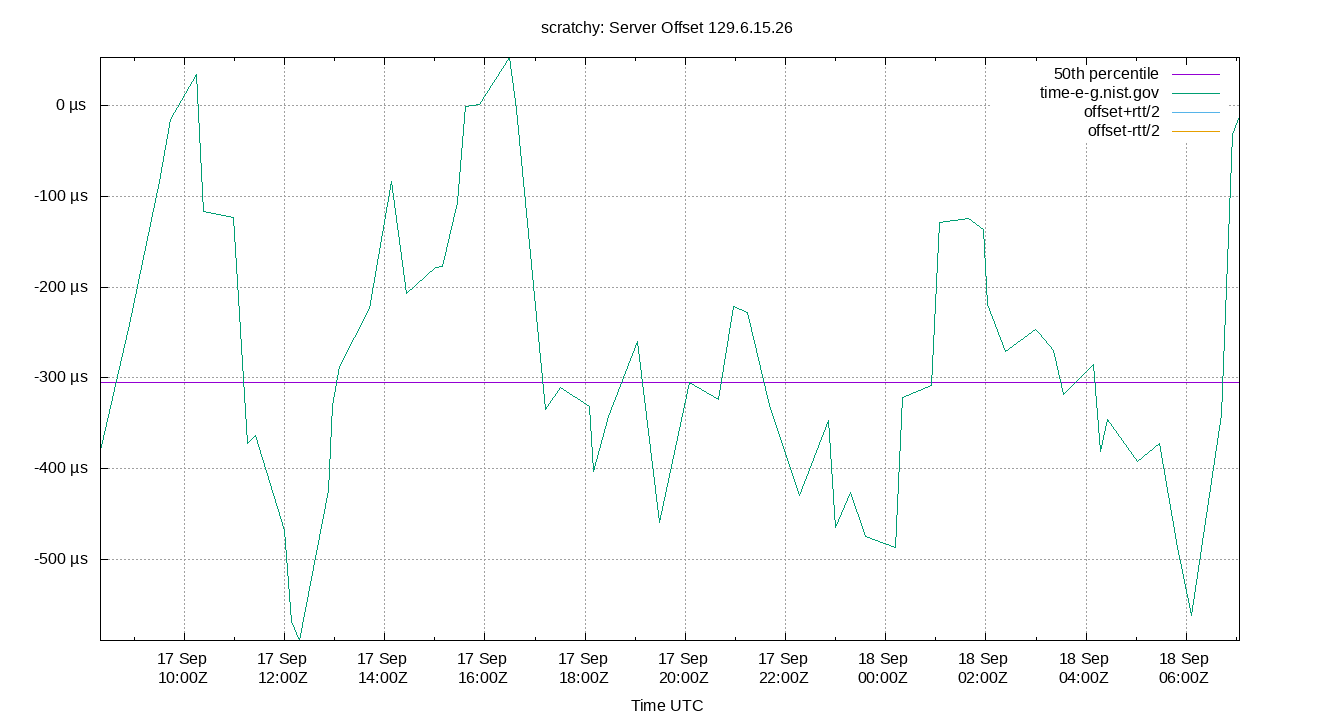

Server Offset 130.207.244.240

peer offset 130.207.244.240 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 130.207.244.240 -420.581 -420.581 -301.754 -8.773 298.651 314.783 314.783 600.405 735.364 186.801 -5.147 µs -4.357 10.68

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 18.26.4.105

peer offset 18.26.4.105 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 18.26.4.105 -460.673 -460.673 -351.806 -97.828 120.827 170.928 170.928 472.633 631.601 152.965 -115.821 µs -10.97 32.06

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 192.5.41.41

peer offset 192.5.41.41 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 192.5.41.41 -1.680 -1.680 -1.544 -1.088 -0.836 -0.777 -0.777 0.708 0.903 0.209 -1.118 ms -275 1880

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2001:470:0:2c8::2 (clock.nyc.he.net)

peer offset 2001:470:0:2c8::2 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2001:470:0:2c8::2 (clock.nyc.he.net) -807.232 -807.232 -678.312 -405.774 -32.639 3.852 3.852 645.673 811.084 184.575 -395.916 µs -40.44 158.6

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2604:a880:2:d1::116:d001 (itchy.podsix.net)

peer offset 2604:a880:2:d1::116:d001 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2604:a880:2:d1::116:d001 (itchy.podsix.net) 0.528 0.528 0.875 1.346 1.671 1.695 1.695 0.796 1.167 0.248 1.318 ms 92.77 449.9

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2610:20:6f15:15::26 (time-e-g.nist.gov)

peer offset 2610:20:6f15:15::26 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2610:20:6f15:15::26 (time-e-g.nist.gov) -369.266 -369.266 -94.394 372.185 583.222 649.269 649.269 677.616 1,018.535 193.972 321.108 µs 0.8821 4.657

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Jitters

peer jitters plot

The RMS Jitter of all refclocks and servers. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



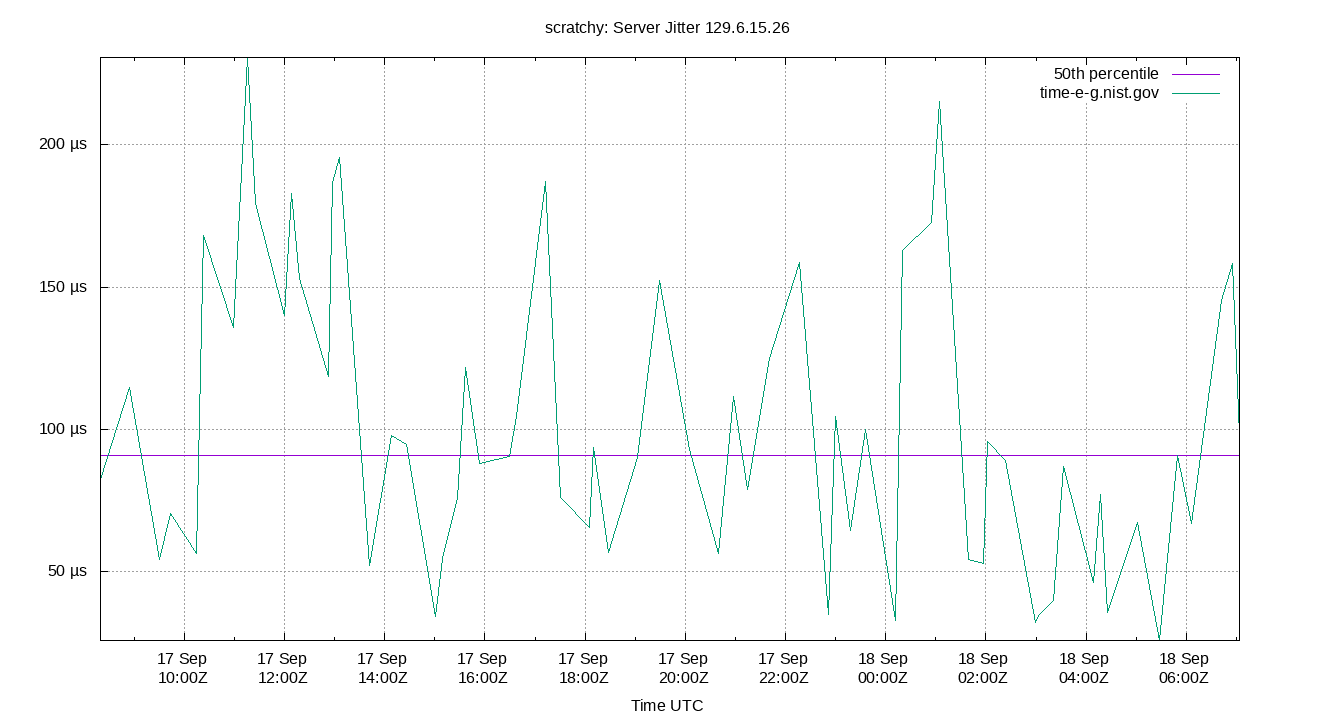

Server Jitter 130.207.244.240

peer jitter 130.207.244.240 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 130.207.244.240 0.080 0.080 0.122 0.397 1.087 2.167 2.167 0.965 2.087 0.384 0.476 ms 2.815 11.11

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 18.26.4.105

peer jitter 18.26.4.105 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 18.26.4.105 35.812 35.812 39.190 143.509 622.703 844.789 844.789 583.513 808.977 196.293 219.234 µs 1.699 4.82

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 192.5.41.41

peer jitter 192.5.41.41 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 192.5.41.41 0.139 0.139 0.172 0.413 1.888 1.952 1.952 1.716 1.813 0.442 0.530 ms 2.861 9.365

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2001:470:0:2c8::2 (clock.nyc.he.net)

peer jitter 2001:470:0:2c8::2 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2001:470:0:2c8::2 (clock.nyc.he.net) 0.026 0.026 0.052 0.176 1.869 2.107 2.107 1.817 2.081 0.550 0.449 ms 1.122 3.52

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2604:a880:2:d1::116:d001 (itchy.podsix.net)

peer jitter 2604:a880:2:d1::116:d001 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2604:a880:2:d1::116:d001 (itchy.podsix.net) 0.057 0.057 0.074 0.308 1.134 1.324 1.324 1.060 1.268 0.333 0.454 ms 1.924 4.482

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2610:20:6f15:15::26 (time-e-g.nist.gov)

peer jitter 2610:20:6f15:15::26 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2610:20:6f15:15::26 (time-e-g.nist.gov) 0.152 0.152 0.190 0.406 0.750 1.009 1.009 0.560 0.857 0.188 0.419 ms 6.213 17.34

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Summary


Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -2.773 -2.773 -2.769 -2.679 -2.632 -2.609 -2.609 0.137 0.163 0.038 -2.686 ppm -3.792e+05 2.746e+07
Local Clock Time Offset -400.613 -400.613 -293.840 1.977 285.531 476.853 476.853 579.371 877.466 169.936 -2.848 µs -4.026 10.05
Local RMS Frequency Jitter 8.916 8.916 9.925 13.769 22.243 26.693 26.693 12.318 17.777 3.652 14.502 ppb 36.25 148.2
Local RMS Time Jitter 137.423 137.423 146.519 200.807 250.987 256.013 256.013 104.468 118.590 31.601 198.039 µs 161.9 937.2
Server Jitter 130.207.244.240 0.080 0.080 0.122 0.397 1.087 2.167 2.167 0.965 2.087 0.384 0.476 ms 2.815 11.11
Server Jitter 18.26.4.105 35.812 35.812 39.190 143.509 622.703 844.789 844.789 583.513 808.977 196.293 219.234 µs 1.699 4.82
Server Jitter 192.5.41.41 0.139 0.139 0.172 0.413 1.888 1.952 1.952 1.716 1.813 0.442 0.530 ms 2.861 9.365
Server Jitter 2001:470:0:2c8::2 (clock.nyc.he.net) 0.026 0.026 0.052 0.176 1.869 2.107 2.107 1.817 2.081 0.550 0.449 ms 1.122 3.52
Server Jitter 2604:a880:2:d1::116:d001 (itchy.podsix.net) 0.057 0.057 0.074 0.308 1.134 1.324 1.324 1.060 1.268 0.333 0.454 ms 1.924 4.482
Server Jitter 2610:20:6f15:15::26 (time-e-g.nist.gov) 0.152 0.152 0.190 0.406 0.750 1.009 1.009 0.560 0.857 0.188 0.419 ms 6.213 17.34
Server Offset 130.207.244.240 -420.581 -420.581 -301.754 -8.773 298.651 314.783 314.783 600.405 735.364 186.801 -5.147 µs -4.357 10.68
Server Offset 18.26.4.105 -460.673 -460.673 -351.806 -97.828 120.827 170.928 170.928 472.633 631.601 152.965 -115.821 µs -10.97 32.06
Server Offset 192.5.41.41 -1.680 -1.680 -1.544 -1.088 -0.836 -0.777 -0.777 0.708 0.903 0.209 -1.118 ms -275 1880
Server Offset 2001:470:0:2c8::2 (clock.nyc.he.net) -807.232 -807.232 -678.312 -405.774 -32.639 3.852 3.852 645.673 811.084 184.575 -395.916 µs -40.44 158.6
Server Offset 2604:a880:2:d1::116:d001 (itchy.podsix.net) 0.528 0.528 0.875 1.346 1.671 1.695 1.695 0.796 1.167 0.248 1.318 ms 92.77 449.9
Server Offset 2610:20:6f15:15::26 (time-e-g.nist.gov) -369.266 -369.266 -94.394 372.185 583.222 649.269 649.269 677.616 1,018.535 193.972 321.108 µs 0.8821 4.657
Summary as CSV file

Glossary:

frequency offset:
The difference between the ntpd calculated frequency and the local system clock frequency (usually in parts per million, ppm)
jitter, dispersion:
The short term change in a value. NTP measures Local Time Jitter, Refclock Jitter, and Server Jitter in seconds. Local Frequency Jitter is in ppm or ppb.
kurtosis, Kurt:
The kurtosis of a random variable X is the fourth standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of kurtosis. A normal distribution has a kurtosis of three. NIST describes a kurtosis over three as "heavy tailed" and one under three as "light tailed".
ms, millisecond:
One thousandth of a second = 0.001 seconds, 1e-3 seconds
mu, mean:
The arithmetic mean: the sum of all the values divided by the number of values. The formula for mu is: "mu = (∑xi) / N". Where xi denotes the data points and N is the number of data points.
ns, nanosecond:
One billionth of a second, also one thousandth of a microsecond, 0.000000001 seconds and 1e-9 seconds.
percentile:
The value below which a given percentage of values fall.
ppb, parts per billion:
Ratio between two values. These following are all the same: 1 ppb, one in one billion, 1/1,000,000,000, 0.000,000,001, 1e-9 and 0.000,000,1%
ppm, parts per million:
Ratio between two values. These following are all the same: 1 ppm, one in one million, 1/1,000,000, 0.000,001, and 0.000,1%
‰, parts per thousand:
Ratio between two values. These following are all the same: 1 ‰. one in one thousand, 1/1,000, 0.001, and 0.1%
refclock:
Reference clock, a local GPS module or other local source of time.
remote clock:
Any clock reached over the network, LAN or WAN. Also called a peer or server.
time offset:
The difference between the ntpd calculated time and the local system clock's time. Also called phase offset.
σ, sigma:
Sigma denotes the standard deviation (SD) and is centered on the arithmetic mean of the data set. The SD is simply the square root of the variance of the data set. Two sigma is simply twice the standard deviation. Three sigma is three times sigma. Smaller is better.
The formula for sigma is: "σ = √[ ∑(xi-mu)^2 / N ]". Where xi denotes the data points and N is the number of data points.
skewness, Skew:
The skewness of a random variable X is the third standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of skewness. Wikipedia describes it best: "The qualitative interpretation of the skew is complicated and unintuitive."
A normal distribution has a skewness of zero.
upstream clock:
Any server or reference clock used as a source of time.
µs, us, microsecond:
One millionth of a second, also one thousandth of a millisecond, 0.000,001 seconds, and 1e-6 seconds.



This page autogenerated by ntpviz, part of the NTPsec project
html 5    Valid CSS!
